• 12-volt pwr point in instrument panel
• Black plastic stepwell pads
• Courtesy light switches on all doors
• Driver & front passenger A-pillar interior grab handle
• Front air conditioning
• Front vinyl headliner
• Lights-inc: front dome, center & rear cargo
• Tilt steering column

• 130-amp alternator
• 138" wheelbase
• 3.55 rear axle ratio
• 35 gallon fuel tank
• 6700# GVWR
• Electronic throttle control
• Full-size spare tire
• Handling pkg-inc: front stabilizer bar, HD front/rear shock absorbers
• Maintenance-free battery
• P235/70R16 all-season BSW tires
• Pwr 4-wheel anti-lock disc brakes
• Pwr steering
• Rear wheel drive
• Semi-float rear suspension
• Twin I-beam front suspension

• Driver & front passenger second generation airbags
• Pwr 4-wheel anti-lock disc brakes

4.6L SOHC EFI V8 "TRITON" ENGINE

• (STD)

• 4-speed automatic transmission w/OD-inc: auxiliary cooler
• 130-amp alternator
• 4.6L SOHC EFI V8 "Triton" engine
• 35 gallon fuel tank
• Twin I-beam front suspension
• Pwr steering
• Electronic throttle control
• 6700# GVWR
• Rear wheel drive
• Pwr 4-wheel anti-lock disc brakes
• Semi-float rear suspension
• Maintenance-free battery
• 138" wheelbase
• Handling pkg-inc: front stabilizer bar HD front/rear shock absorbers
• P235/70R16 all-season BSW tires
• 3.55 rear axle ratio
• Full-size spare tire
• Hinged 60/40 side cargo doors
• Solar tinted glass
• Black plastic stepwell pads
• Front vinyl headliner
• Tilt steering column
• Courtesy light switches on all doors
• Color-keyed engine console cover w/dual stowage (4) cup holders
• Lights-inc: front dome center & rear cargo
• Driver & front passenger A-pillar interior grab handle
• Front air conditioning
• 12-volt pwr point in instrument panel
• Driver & front passenger second generation airbags
• Pwr 4-wheel anti-lock disc brakes

• Vehicle
• Rear Door Type: Dual
• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 25.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3240
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2769
• Curb Weight - Rear (lbs): 2065
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 975
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf 1-Stage
• Spring Capacity - Front (lbs): 3240
• Spring Capacity - Rear (lbs): 3830
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 30.2
• Shock Absorber Diameter - Rear (mm): 30.2
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.72 x 0.38
• Rear Brake Rotor Diam x Thickness (in): 12.9 x 0.54
• Tires
• Front Tire Order Code: T41
• Rear Tire Order Code: T41
• Spare Tire Order Code: 51A
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1984
• Rear Tire Capacity (lbs): 1984
• Spare Tire Capacity (lbs): 1984
• Revolutions/Mile @ 45 mph - Front: 719
• Revolutions/Mile @ 45 mph - Rear: 719
• Revolutions/Mile @ 45 mph - Spare: 719
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 46.7
• Turning Diameter - Wall to Wall (ft): 48.9
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: RH Dual Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 211.9
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 80.7
• Overhang, Front (in): 30.1
• Overhang, Rear w/bumper (in): 43.8
• Ground to Top of Load Floor (in): 26.9
• Ground Clearance, Front (in): 7.2
• Ground Clearance, Rear (in): 7.2
• Rear Door Opening Height (in): 48.3
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): 18.0
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 123.0
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.8
• Cargo Box (Area) Height (in): 52.5
• Cargo Volume (ft³): 256.5
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.4
• Front Hip Room (in): 65.6
• Summary

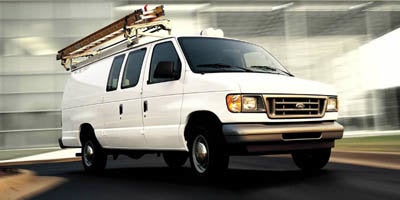

• Vehicle Name: Ford Econoline Cargo Van
• Body Style: E-150
• Body Code: 138
